828RC Stainless Steel Suspension Links – Redcat Ascent Apex
PLEASE READ CAREFULLY! 2 DIFFERENT REAR SETS AVAILABLE!
Upgrade your Redcat Ascent Apex with a precision-designed set of stainless steel suspension links built for durability and maximum performance. These links retain the stock wheelbase while adding smart geometry tweaks to clear interference and improve ground clearance where it matters most.

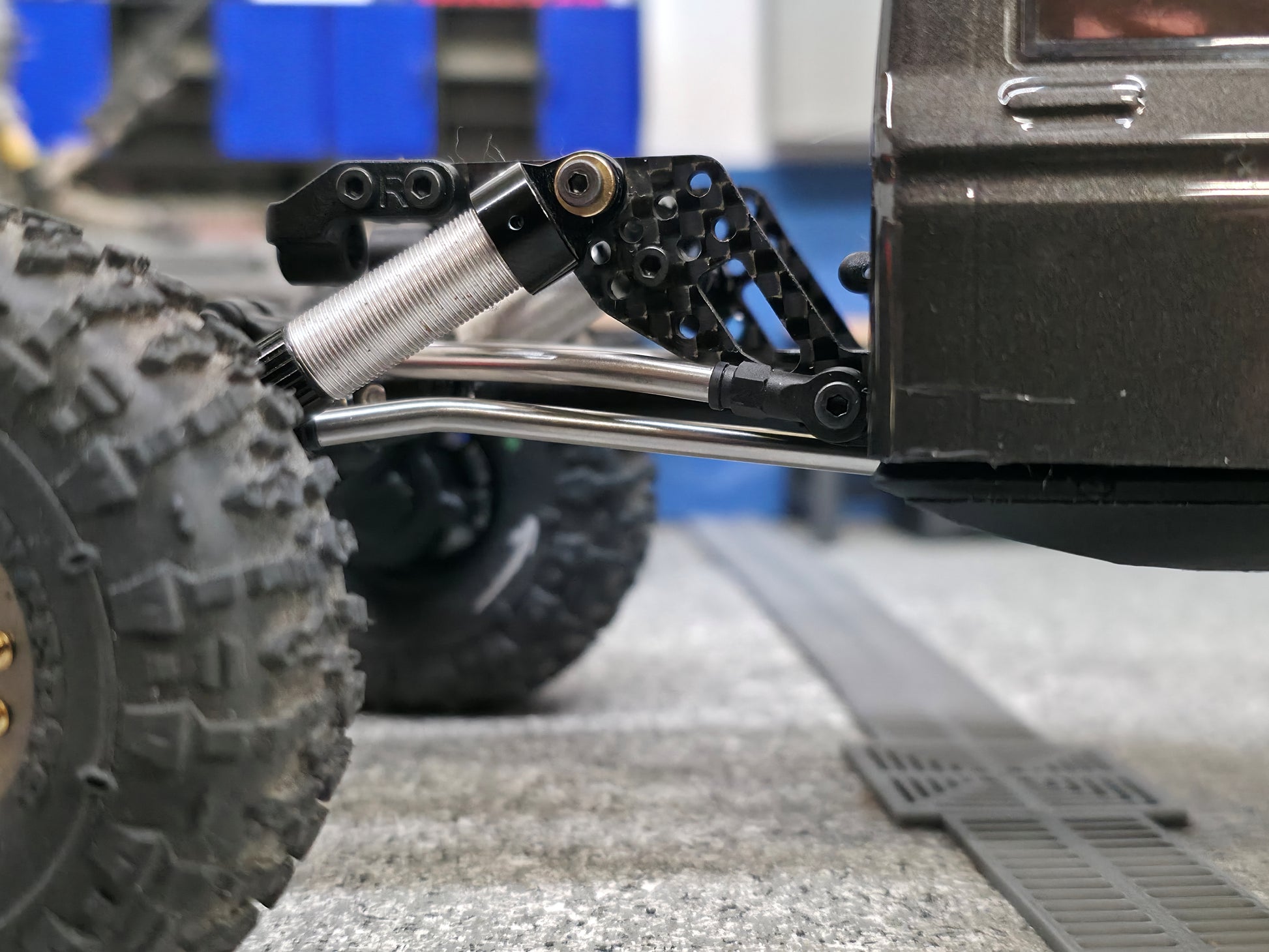

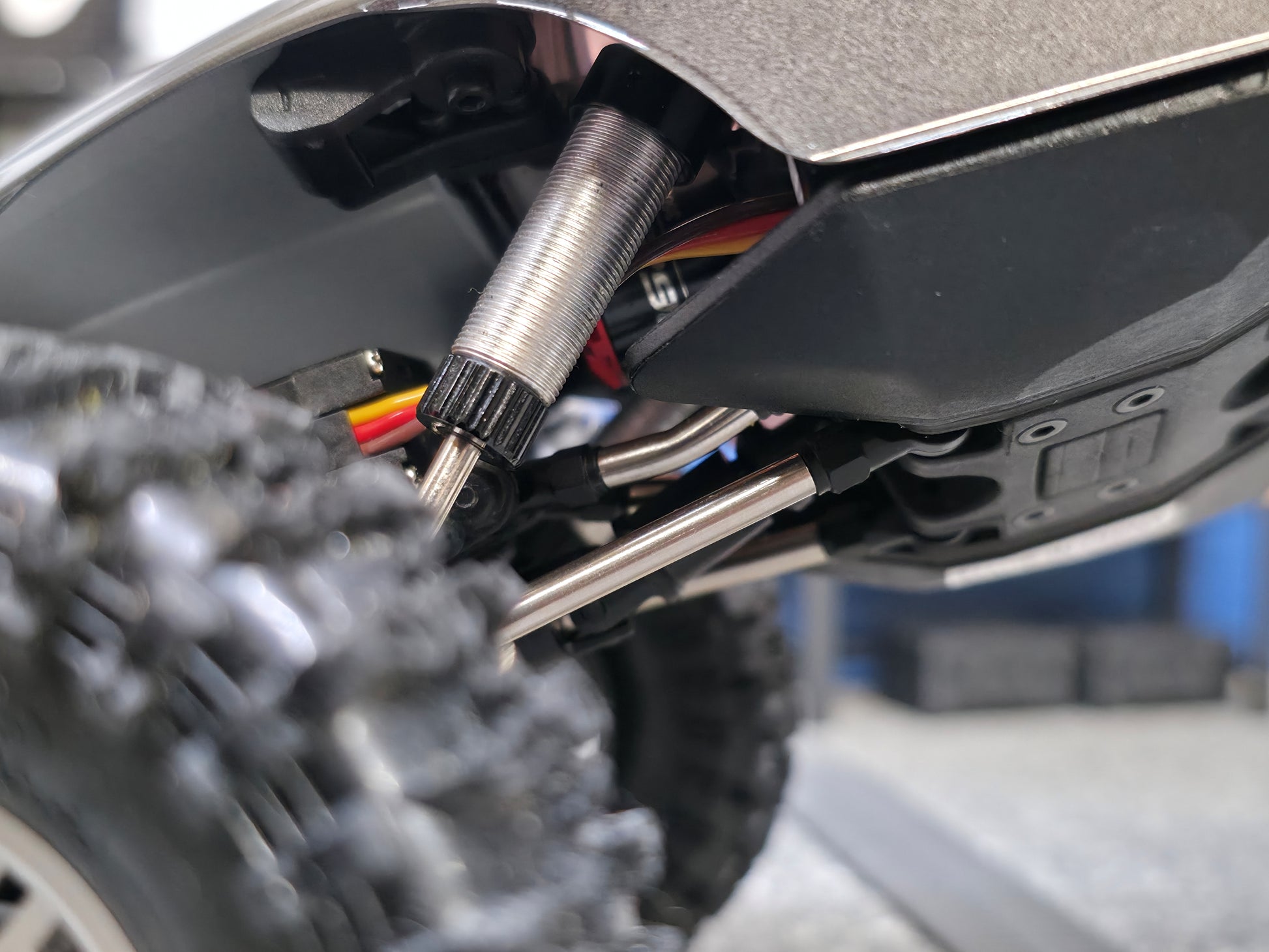

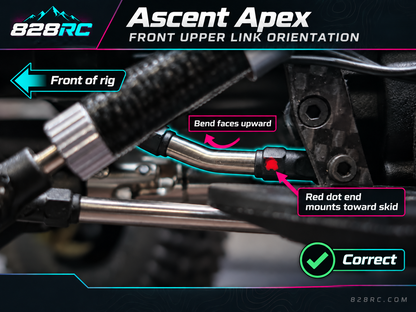

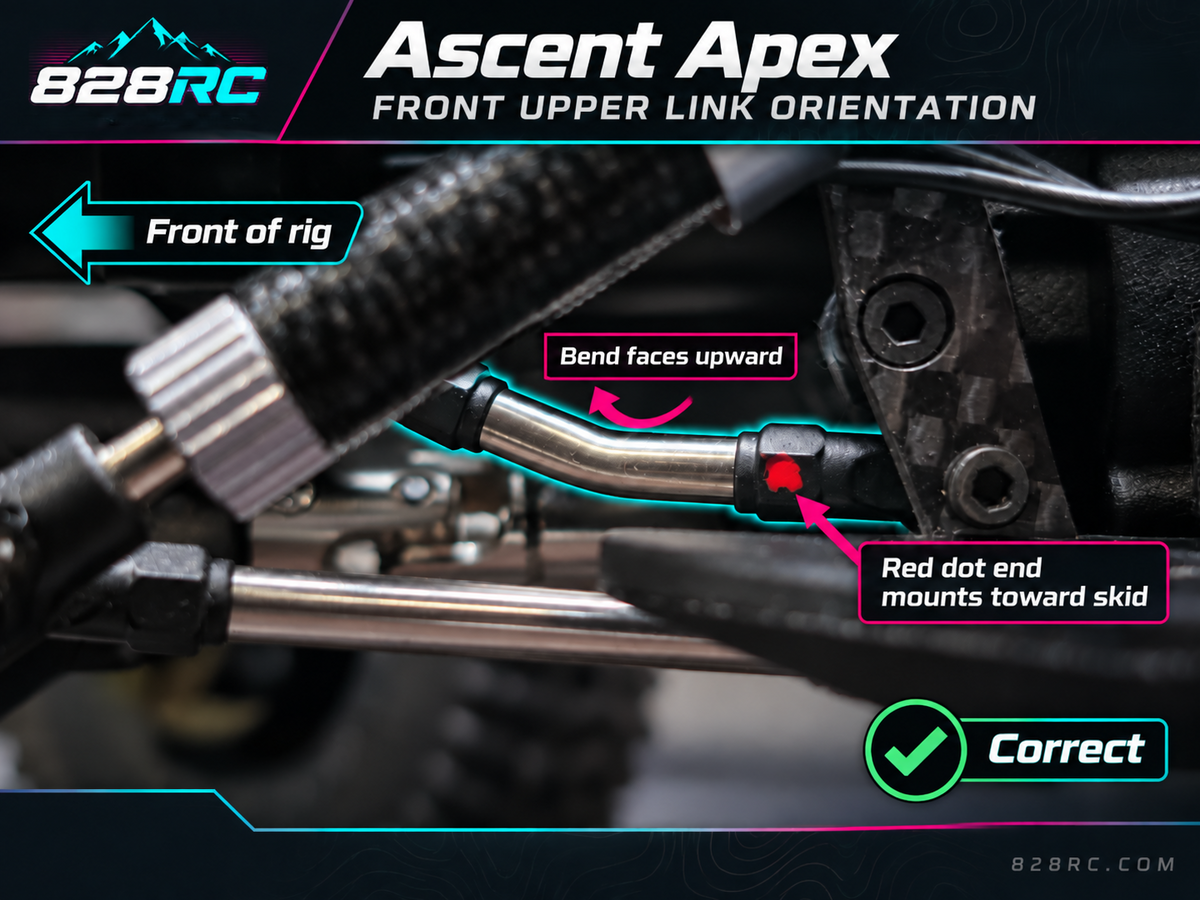

– Front Upper Link: Single bend made to clear the stock brushless motor without sacrificing strength.

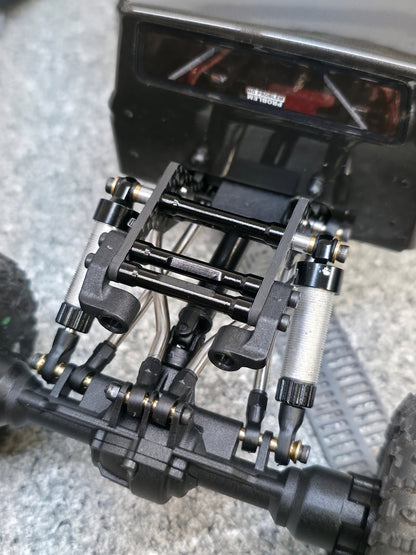

– Rear Upper Links: Slightly extended with a single bend to tilt the rear axle housing rearward, slightly increasing driveline angle to provide maximum clearance under the rear driveshaft.

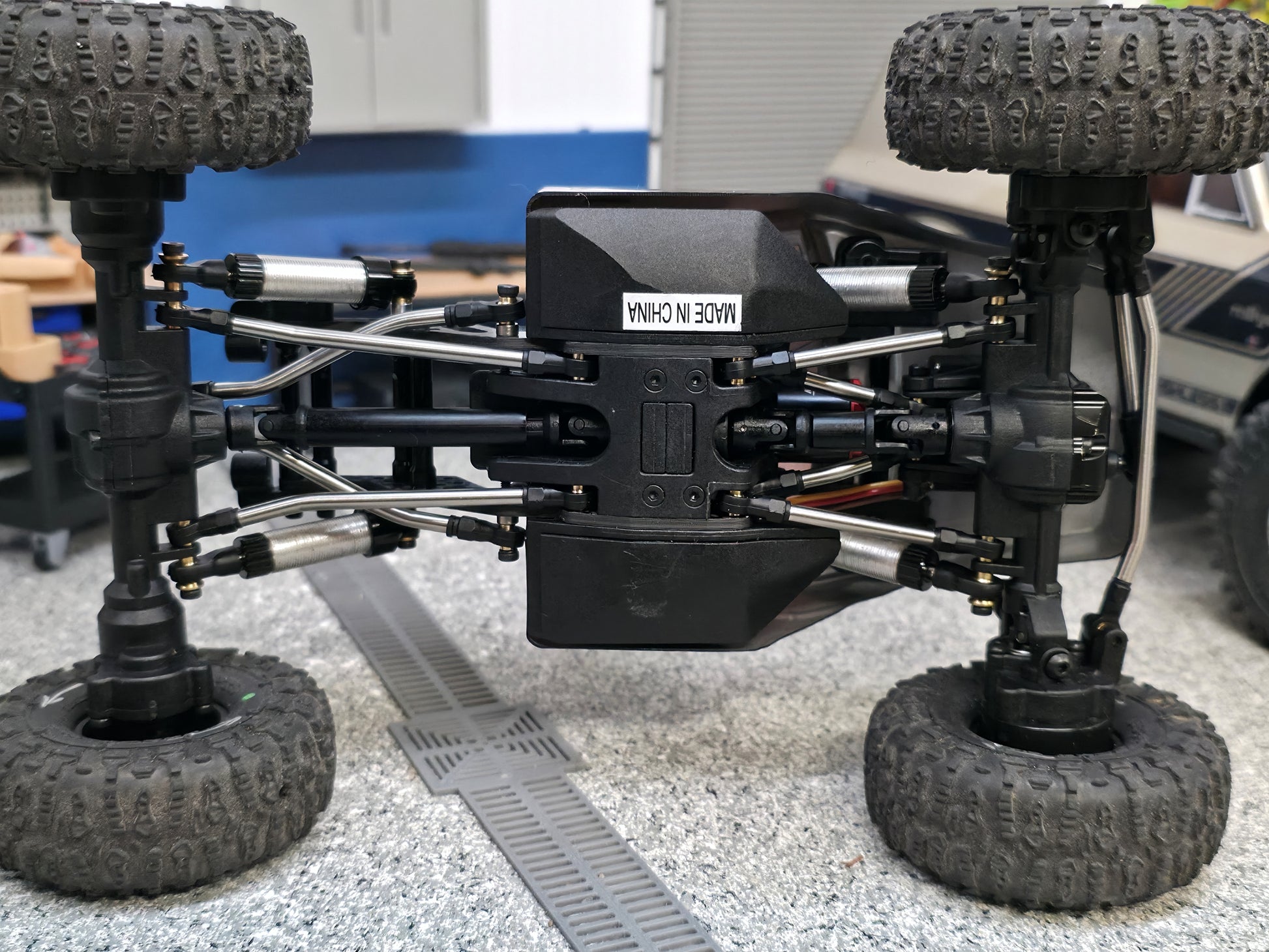

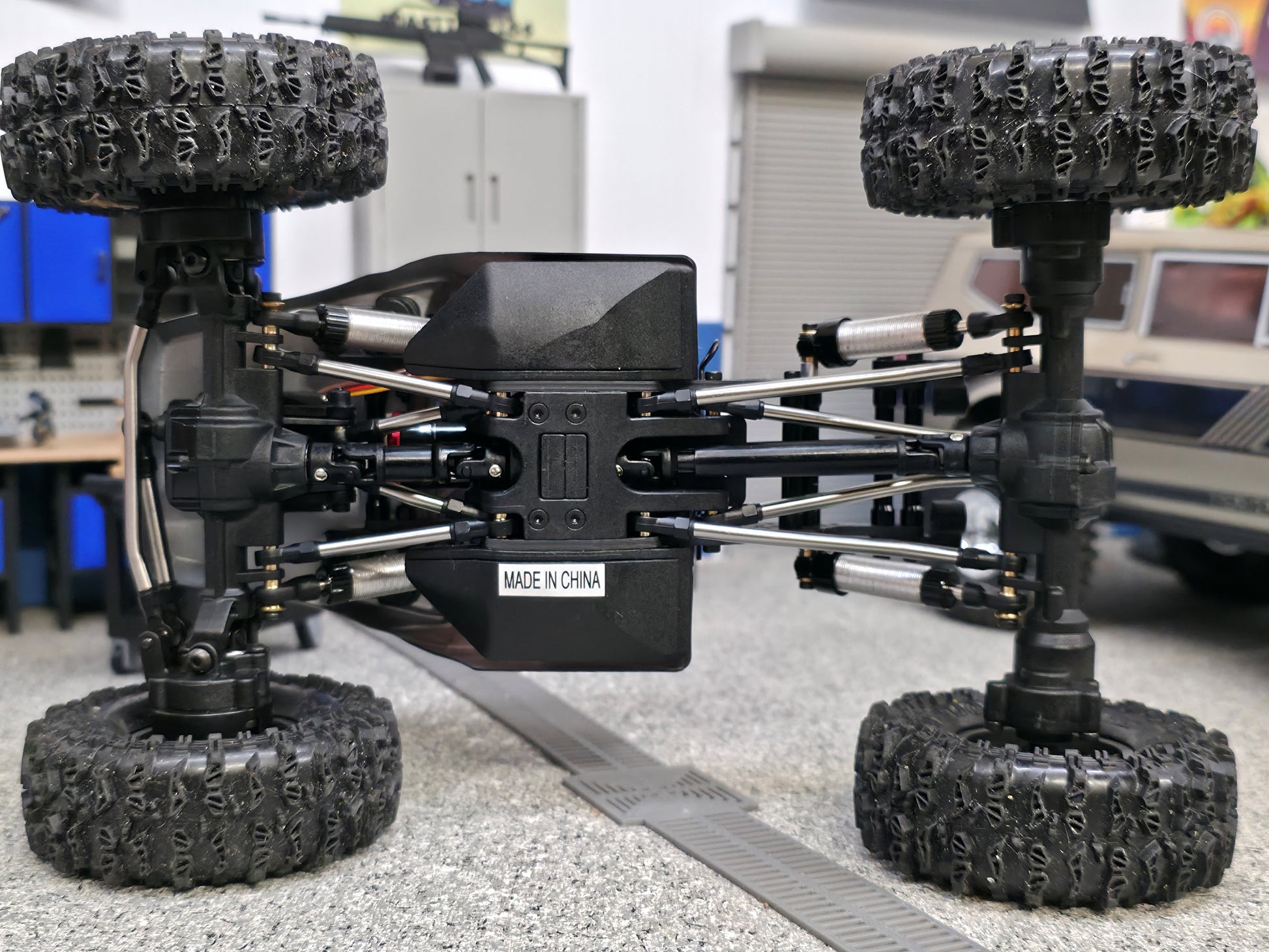

– Rear Lower Links: Subtle “S” bend eliminates contact with the rear upper link at the skid, keeps the driveshaft tucked safely above the lowers, and maximizes breakover clearance at the rear axle.

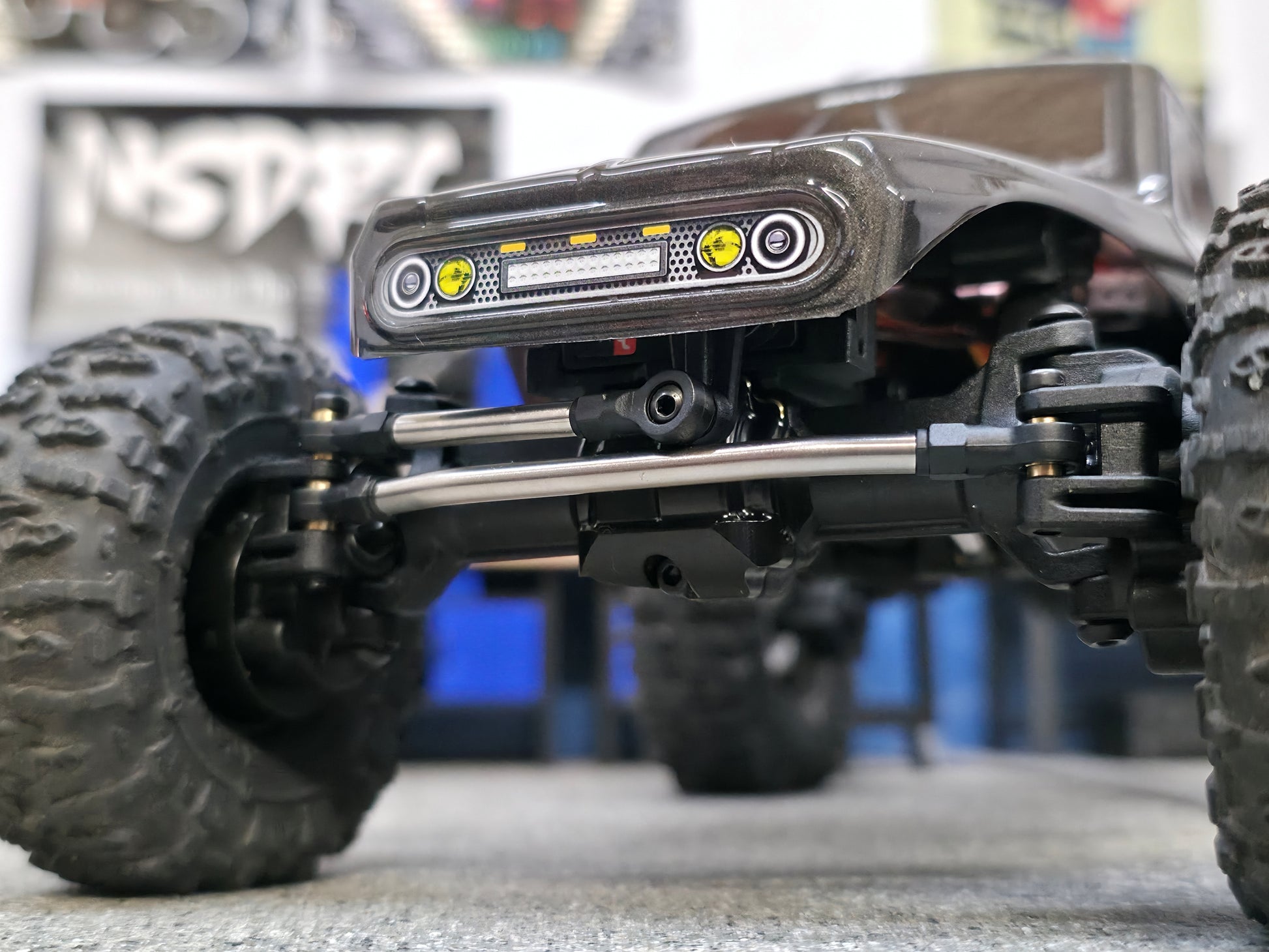

– Optional Steering Links: Available as an add-on to complete your full stainless link upgrade package.

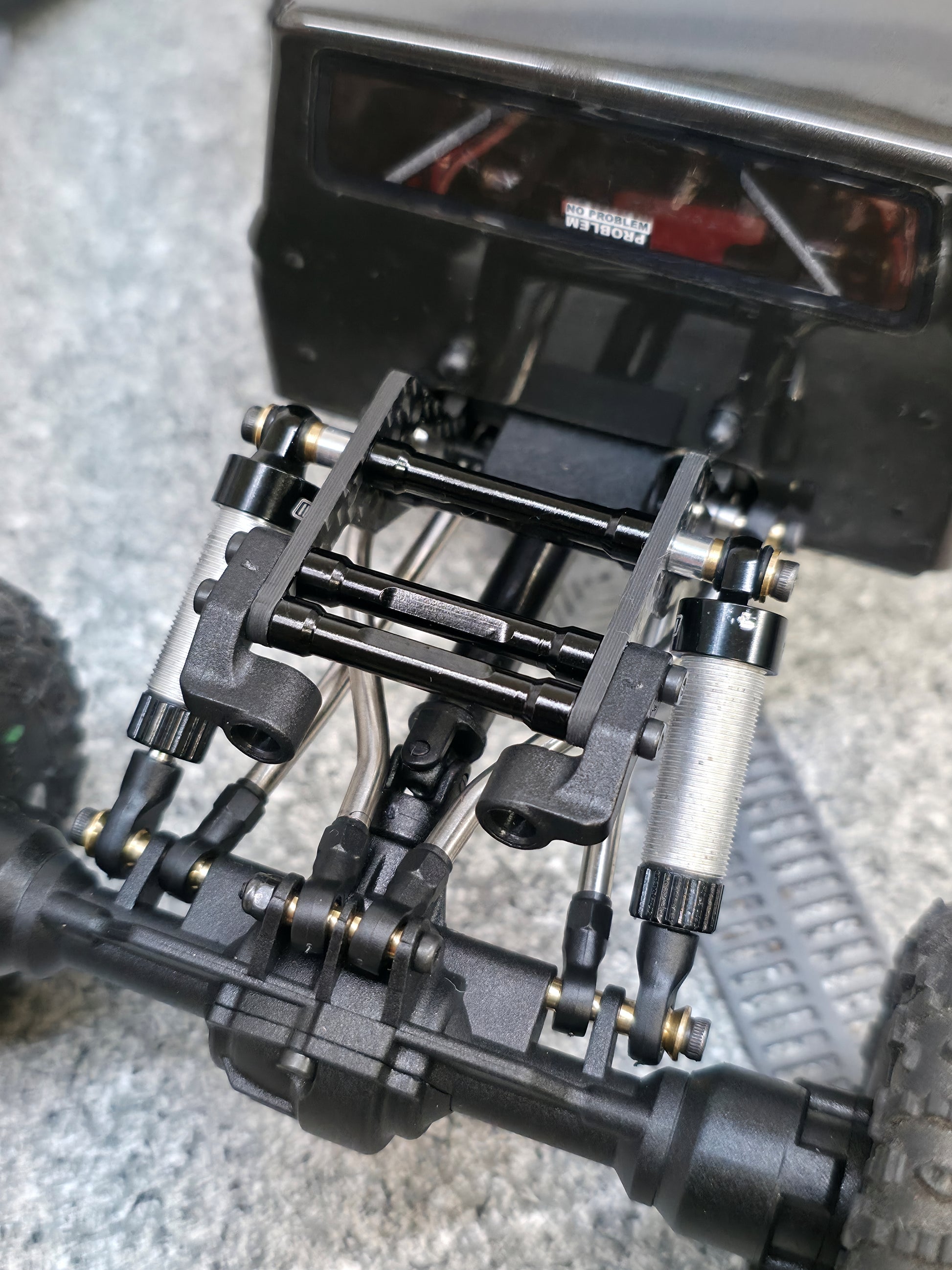

*Additionally, an optional rear outboard link set is available, which includes outboard-mounted rear upper links paired with single-bend rear lowers. Outboard rear upper links provide more stability against torque twist by increasing the triangulation in the rear four link suspension. It also provides more upward movement in the rear lower link, allowing the use of shorter shocks and in turn, a lower ride height. This configuration requires a 2 mm spacer between the rear upper rod end and the chassis rail, and may also require trimming or modifying the optional rear bed for proper clearance. INCLUDES HARDWARE NECESSARY FOR INSTALLATION. (2) M2 BOLTS AND (2) 2MM SPACERS.
Made from stainless steel for strength and longevity, these links are a direct upgrade that fine-tunes your Apex for both rugged terrain and high-power performance.
Link sets are made to order. Turnaround time is typically 2-3 days, but can extend out to 2 weeks in some cases depending on workload.
Check stock frequently! I keep inventory low to reduce turnaround time as these are made to order.
